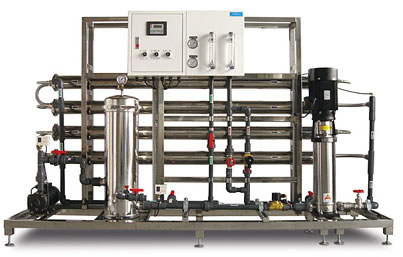

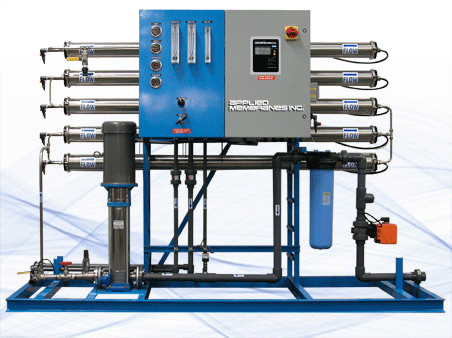

R.O. WITH
CONTROL PANNEL |
| |
Pressure Sand
Filter (PSF)
|
 |
| |
Water is first filtered with PSF unit for removal of
suspended matters and turbidity
|
| |
Activated Carbon Filter (To remove colour, oder, chlorine,
oil & grease)
|
| |
Micron Filtratiion (2 Nos.)
|
| |
These are pressure vessels fitted internally with pleated
catridge elements
|
| |
of 5 & 20 micron ratings, which removes micron sized
particles |
| |
Osmosis Pressure System (High Pressure Pump)
|
| |
A high pressure pump is provided for supplying the feed
water to RO system at 12-14 kg/cm
|
| |
Desalination System by RO membrane element |
| |
A Reverse Osmosis System rejects 90-95% of Total Dissolved
Solids (TDS) |
| |
Storage of treated (final) Water in tank |
| |
UV System |
| |
To deactivate bacterial of final water |
| |
Auto Flushing System (with solinoid valve & Timer) |
| |
This system auto
flushes the RO system automatically for present time. |
